3.97 “ Small Size TFT LCD Display Module

Short Description:


  • Model No: TFT040B029-A0
  • Size: 3.97 inch
  • Pixels: 480×800 Dots
  • A.A: 51.84×86.40 mm
  • Outline: 55.44×96.17×2.1 mm
  • View Direction: IPS/Free
  • Interface: MIPI
  • Brightness(cd/m²): 350
  • Driver IC: ST7701S
  • Touch Panel: Without Touch Panel
  • Product Detail

    Product Tags

    General Description

    Display Type IPS-TFT-LCD
    Brand name WISEVISION
    Size 3.97 inch
    Pixels 480×800 Dots
    View Direction IPS/Free
    Active Area (A.A) 51.84×86.40 mm
    Panel Size 55.44×96.17×2.1 mm
    Color arrangement RGB Vertical stripe
    Color 16.7M
    Brightness 350 (Min)cd/m²
    Interface MIPI
    Pin Number 15
    Driver IC ST7701S
    Backlight Type 8 CHIP-WHITE LED
    Voltage 2.7~3.3 V
    Weight TBD
    Operational Temperature -20 ~ +70 °C
    Storage Temperature -30 ~ +80°C

    Product Information

    TFT040B029-A0 is a 3.97-inch IPS TFT-LCD display module; made of resolution 480 x 800 pixels.

    The module supports MIPI DSI Serial interface (2 lanes), it featured with IPS panel which is having the advantages of wider viewing angle of Left:85 / Right:85 / Up:85 / Down:85 degree (typical), contrast ratio 800 (typical value), brightness 350 cd/m² (typical value), Anti-Glare surface panel.

    This 3.97-inch MIPI LCD display is portrait mode; it integrated driver IC ST7701S on module, interface supply voltage range 2.7V to 3.3V.

    The panel has a wide range of perspectives, bright colors, and high-quality images with saturated nature.

    It is very suitable for small industrial equipment, safety monitoring systems, handheld devices, driving recorders, and other product applications.

    This TFT module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

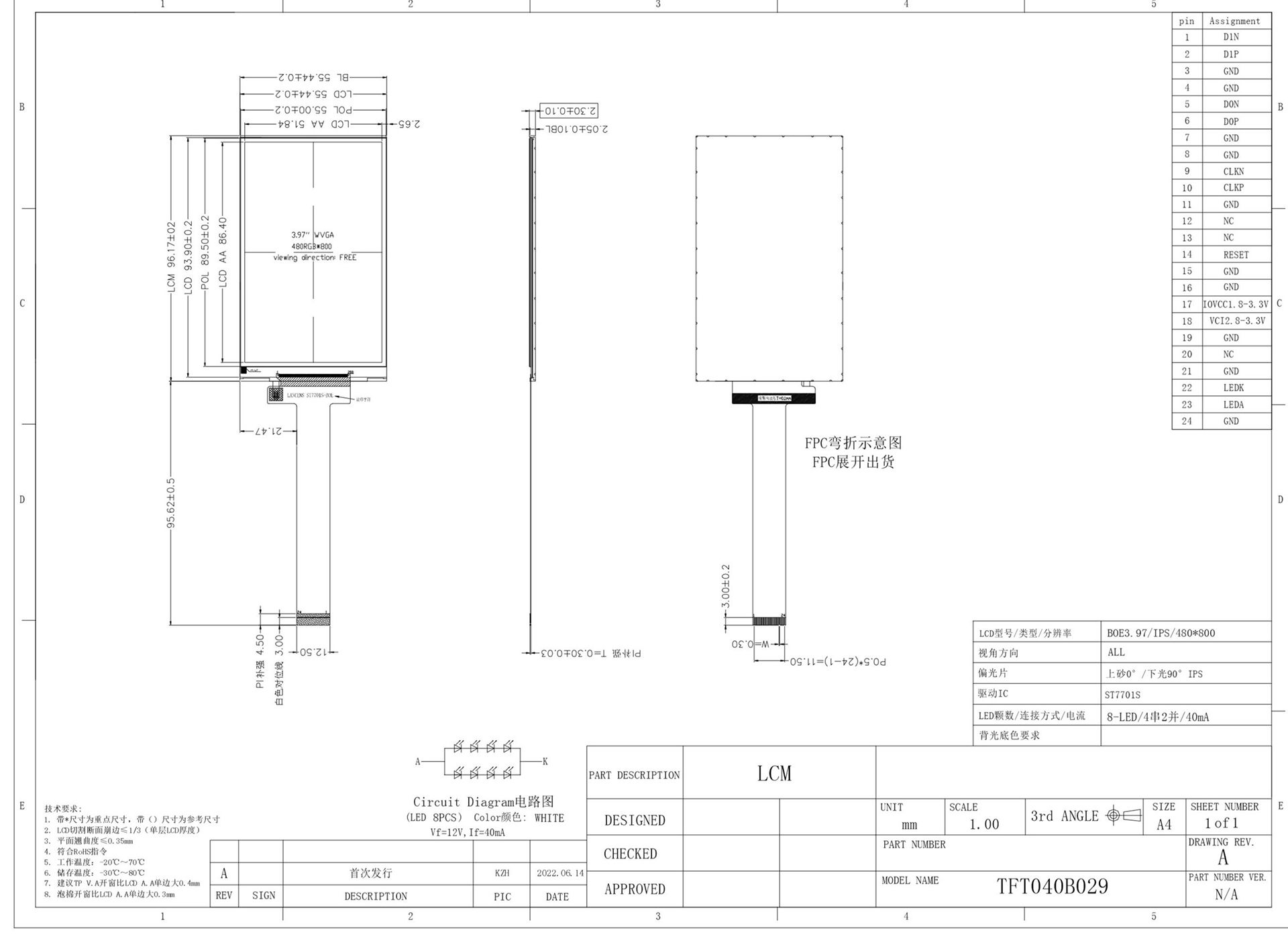

    Mechanical Drawing

    400-TFT5
