3.98 “ Small Size 320 RGB×480 Dots TFT LCD Display Module Screen
General Description
| Display Type | IPS-TFT-LCD |
| Brand name | WISEVISION |
| Size | 3.97 inch |
| Pixels | 320×480 Dots |
| View Direction | IPS/Free |
| Active Area(A.A) | 55.68×83.52 mm |
| Panel Size | 60×92.25×2.2 mm |
| Color arrangement | RGB Vertical stripe |
| Color | 16.7M |
| Brightness | 400 (Min)cd/m² |
| Interface | MCU |
| Pin Number | 15 |
| Driver IC | ILI9488 |
| Backlight Type | 8 CHIP-WHITE LED |
| Voltage | 2.7~3.3 V |
| Weight | TBD |
| Operational Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80°C |
Product Information
TFT398B008 is a 3.98-inch TFT LCD module with an IPS panel. This module is built in with an ILI9488 driver IC that supports MCU interface.
This portrait display features a resolution of 320×480 dots and a brightness of 400 cd/m² (typical value), and contrast of 1200 (typical value).
The IPS panel has the advantage of wide viewing angles of Left:89 / Right:89 / Up:89 / Down:89 degrees (typical).
The panel has a wide range of perspectives, bright colors, and high-quality images with saturated nature.
It is very suitable for applications such as medical instruments, handheld devices, security monitoring system.
The operating temperature of this module is -20 ℃ to 70 ℃, and the storage temperature is -30 ℃ to 80 ℃.

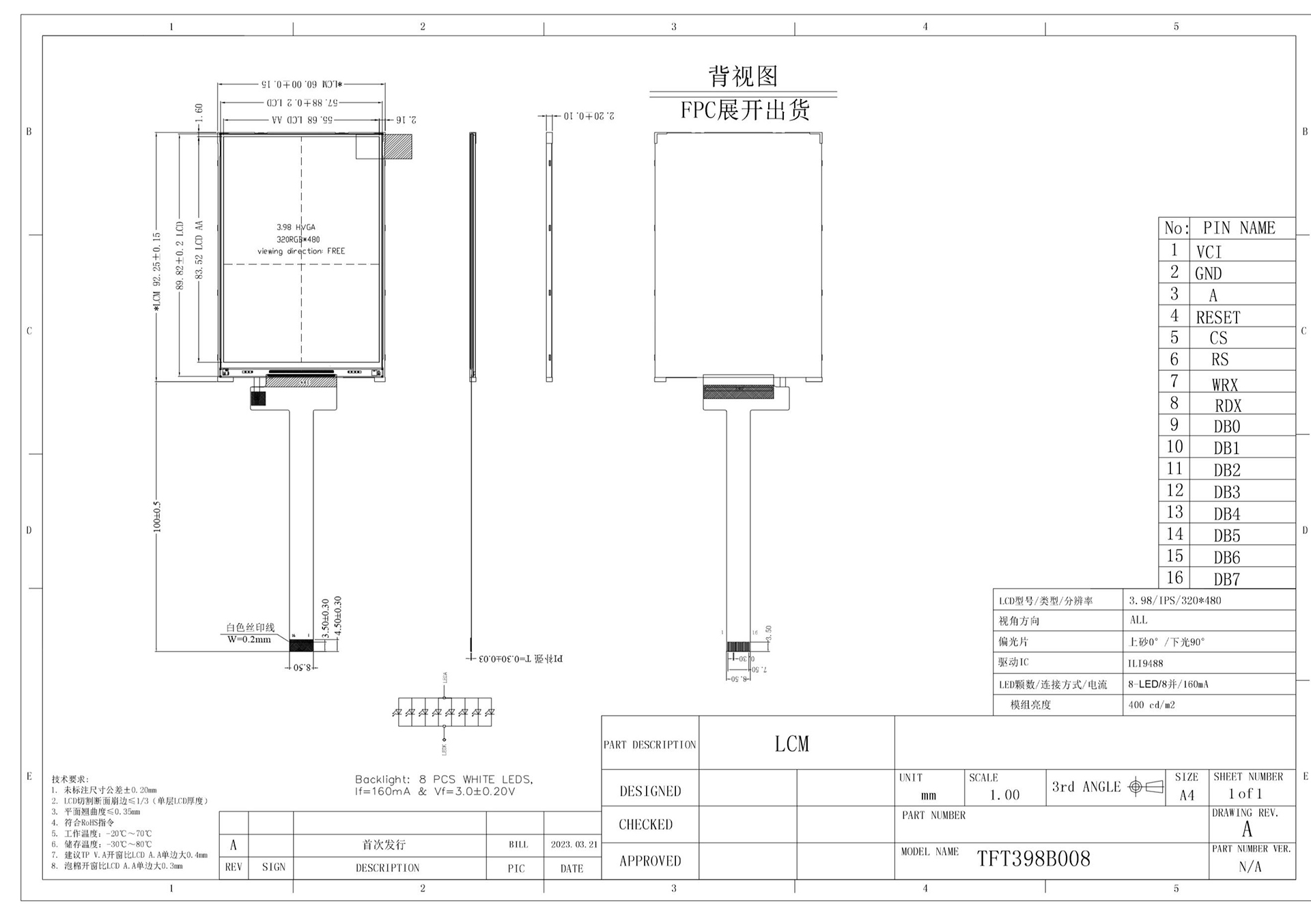

Mechanical Drawing
