5.0 “ Middle Size 720×1280 Dots TFT LCD Display Module Screen

Short Description:


  • Model No: TFT50B030-B0
  • Size: 4.96 inch
  • Pixels: 720×1280 Dots
  • A.A: 61.78×109.82 mm
  • Outline: 66.40×120.05×1.67 mm
  • View Direction: IPS/Free
  • Interface: MIPI
  • Brightness(cd/m²): TBD
  • Driver IC: ILL9881C
  • Touch Panel: Without Touch Panel
  • Product Detail

    Product Tags

    General Description

    Display Type IPS-TFT-LCD
    Brand name WISEVISION
    Size 4.96 inch
    Pixels 720×1280 Dots
    View Direction IPS/Free
    Active Area (A.A) 61.78×109.82 mm
    Panel Size 66.40×120.05×1.67 mm
    Color arrangement RGB Vertical stripe
    Color 262K
    Brightness TBD
    Interface MIPI
    Pin Number 15
    Driver IC ILL9881C
    Backlight Type 12 CHIP-WHITE LED
    Voltage 3.0~3.6 V
    Weight TBD
    Operational Temperature -20 ~ +70 °C
    Storage Temperature -30 ~ +80°C

    Product Information

    TFT50B030-B0 is a 4.96-inch IPS TFT-LCD display module; made of resolution 720×1280 pixels. This MIPI LCD Display Panel has module dimension of 66.40×120.05×1.67 mm and AA size of 61.78×109.82 mm.

    The module supports MIPI DSI Serial interface (2 lanes), it featured with IPS panel which is having the advantages of wider viewing angle of Left:80 / Right:80/ Up:80 / Down:80 degree (typical), contrast ratio 1000 (typical value), Anti-Glare surface panel.

    This 4.96-inch MIPI LCD display is portrait mode; it integrated driver IC ILL9881C on module, interface supply voltage range 3.0V to 3.6V.

    The panel has a wide range of perspectives, bright colors, and high-quality images with saturated nature. It is very suitable for small industrial equipment, safety monitoring systems, handheld devices, driving recorders, and other product applications. This TFT module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

    We understand the importance of delivering high-performance displays that meet the needs of a variety of industries. Through our commitment to quality and reliability, we have built an excellent reputation among our customers around the world.

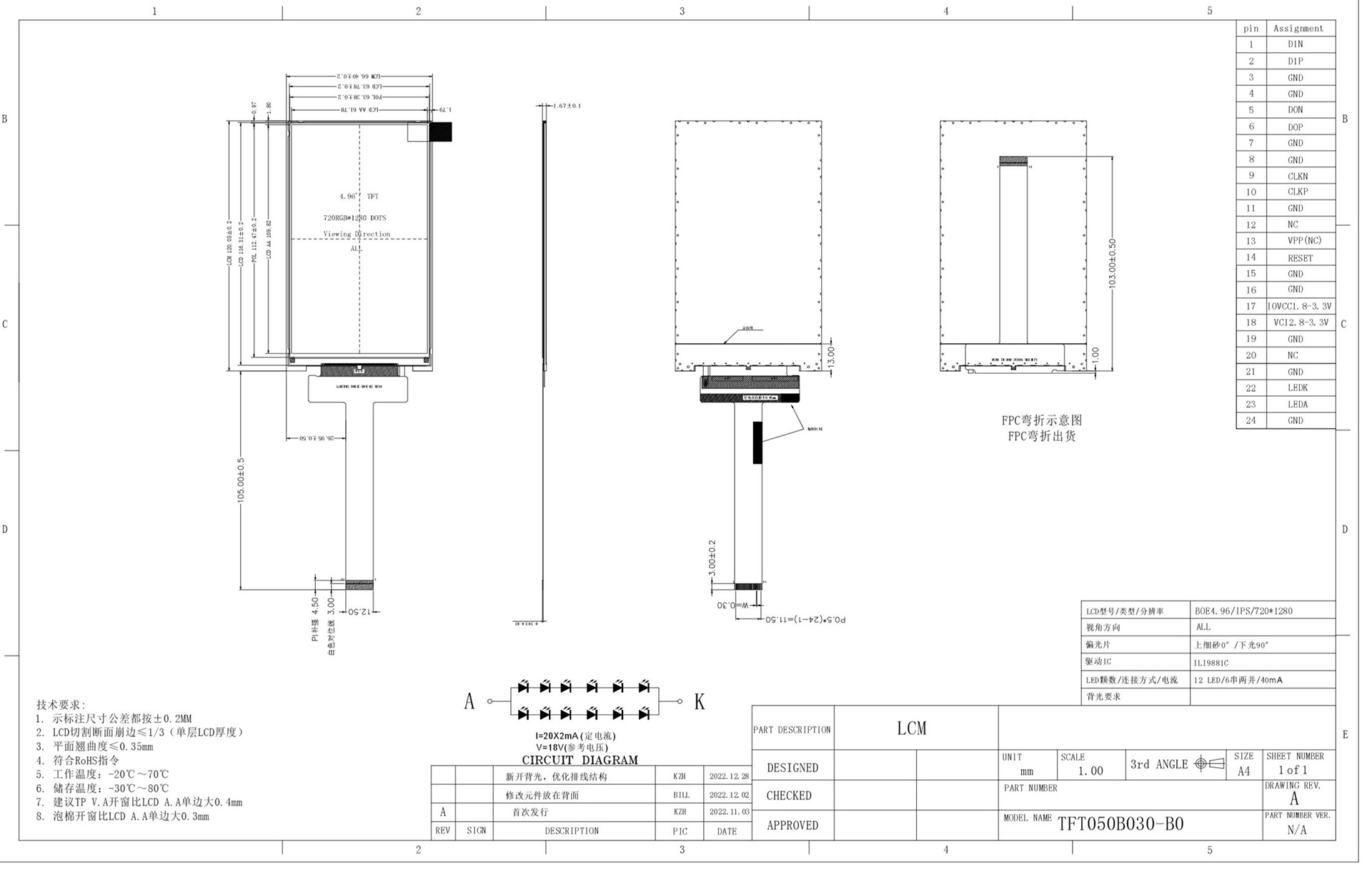

    Mechanical Drawing

    500-TFT5

    Product Introduction

    Introducing the revolutionary 5.0-inch medium-sized 720x1280 dot TFT LCD display module screen, an outstanding product that sets new standards for visual display technology. This cutting-edge display module features precision and innovative engineering to deliver vibrant colors, clear images and a superior viewing experience.

    This TFT LCD display module has a screen size of 5.0 inches, providing ample space for an immersive multimedia experience, perfect for gaming, watching videos, or browsing pictures. HD resolution of 720x1280 dots ensures every detail is captured with stunning clarity, bringing images to life and enhancing your overall visual experience.

    The TFT (Thin Film Transistor) technology used in this display module ensures faster response time, excellent viewing angles and reduced power consumption. This means you can enjoy seamless graphics and smooth transitions without compromising battery life. Superior color reproduction accurately depicts a wide range of colors, allowing you to experience vibrant visuals as they were meant to be.

    The 5.0-inch medium-sized TFT LCD display module screen also uses advanced touch screen technology, completely changing the way you interact with your device. With its responsive and intuitive touch capabilities, you can easily navigate menus, swipe between screens, and enjoy a more interactive user experience.

    Durability and reliability are key features of this display module. Its sturdy construction and high-quality materials ensure long-lasting performance, making it ideal for a variety of applications, including smartphones, tablets, GPS systems, portable gaming devices, and more. The module is also easy to install and integrate into a variety of devices, providing manufacturers with a worry-free solution.

    Experience the future of visual display technology with a 5.0-inch medium-sized 720x1280 dot TFT LCD display module screen. Immerse yourself in a world of vibrant colors, crisp images and captivating visuals. Upgrade your device and unlock endless possibilities with this great product.
