5.0 “ Middle Size 800×480 Dots TFT LCD Display Module Screen

Short Description:


  • Model No: B050TB903C-18A
  • Size: 5.0 inch
  • Pixels: 800×480 Dots
  • A.A: 108×64.8 mm
  • Outline: 120.7×75.8×3.0 mm
  • View Direction: 6 o'clock
  • Interface: RGB 24bit
  • Brightness(cd/m²): 500
  • Product Detail

    Product Tags

    General Description

    Display Type IPS-TFT-LCD
    Brand name WISEVISION
    Size 5.0 inch
    Pixels 800×480 Dots
    View Direction 6 o'clock
    Active Area (A.A) 108×64.8 mm
    Panel Size 120.7×75.8×3.0 mm
    Color arrangement RGB Vertical stripe
    Color 16.7M
    Brightness 500 cd/m²
    Interface RGB 24bit
    Pin Number 15
    Driver IC TBD
    Backlight Type WHITE LED
    Voltage 3.0~3.6 V
    Weight TBD
    Operational Temperature -20 ~ +70 °C
    Storage Temperature -30 ~ +80°C

    Product Information

    The B050TB903C-18A is a high-quality LCD display from a reputable manufacturer Jiangxi Wisevision Optoelectronics Co., Ltd .With a screen size of 5 inches and a TN panel technology, this display offers a resolution of 800×480 delivering clear and sharp visuals that are perfect for a variety of applications.

    The display ensures reliable and efficient performance. It also features a normally white display mode and an RGB interface with 40 pin numbers, offering easy and flexible integration with other devices.

    The B050TB903C-18A also comes with a 12-month warranty from the manufacturer, giving customers peace of mind and assurance of the display’s quality and reliability.

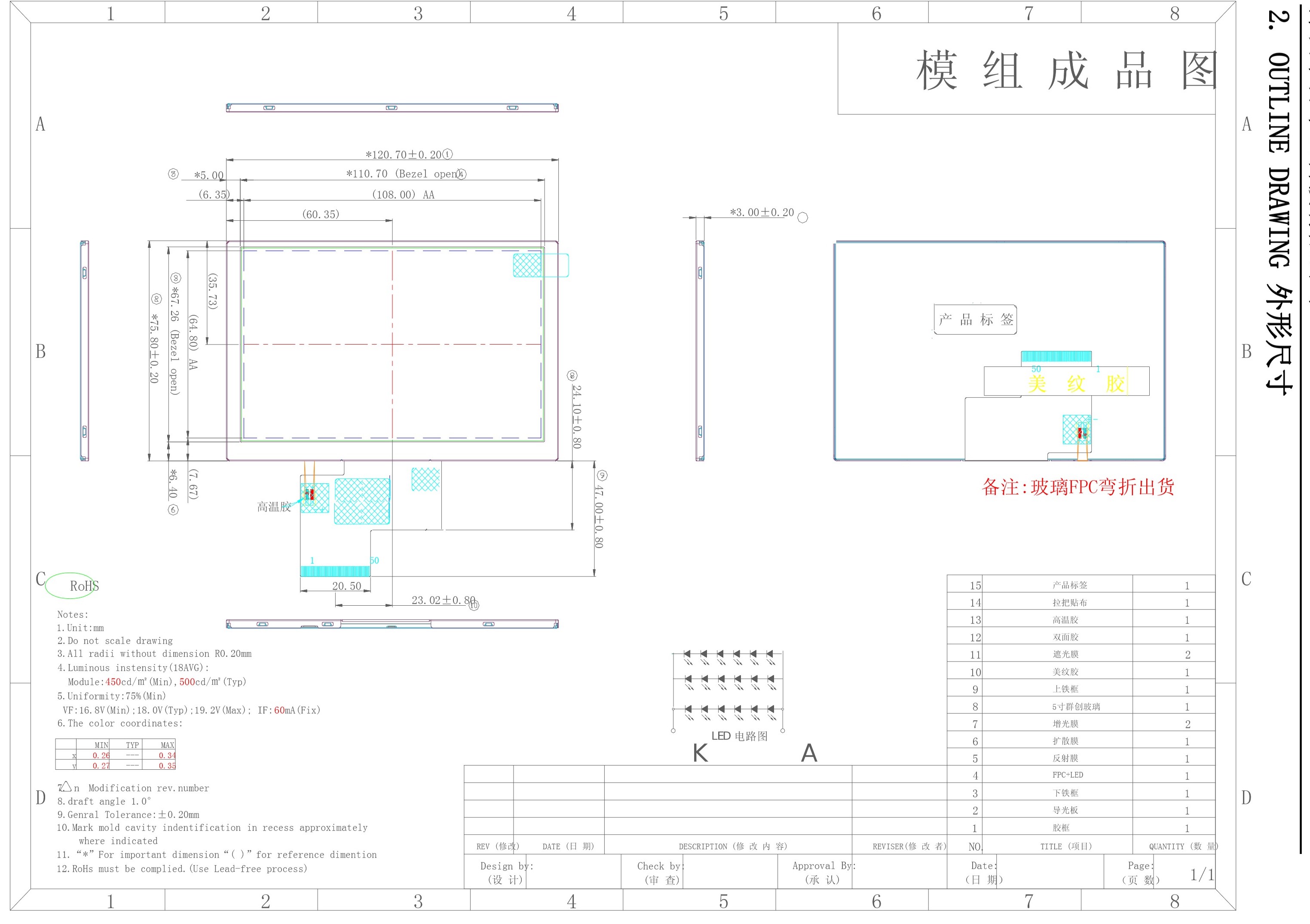

    Mechanical Drawing

    5.0横
