7.0 “ Middle Size 800×480 Dots TFT LCD Display Module Screen
General Description
| Display Type | IPS-TFT-LCD |
| Brand name | WISEVISION |
| Size | 7.0 inch |
| Pixels | 800×480 Dots |
| View Direction | IPS/Free |
| Active Area (A.A) | 153.84×85.632 mm |
| Panel Size | 164.90×100×3.5 mm |
| Color arrangement | RGB Vertical stripe |
| Color | 16.7 M |
| Brightness | 350 (Min)cd/m² |
| Interface | Parallel 8-bit RGB |
| Pin Number | 15 |
| Driver IC | 1*EK9716BD4 1*EK73002AB2 |
| Backlight Type | 27 CHIP-WHITE LED |
| Voltage | 3.0~3.6 V |
| Weight | TBD |
| Operational Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80°C |
Product Information
B070TN333C-27A is a 7” inch TFT-LCD display module; made of resolution 800x480 pixels. This display panel has module dimension of 164.90×100×3.5 mm and AA size of 153.84×85.632 mm. The display mode is normally white, and the interface is RGB. The display has a warranty of 12 months and is available as a factory supply. The display is integrated driver IC EK9716BD4 and EK73002AB2 on module. interface supply voltage range 3.0V to 3.6V. The display can be used in various applications such as car navigation systems, portable media players, industrial control systems, and so on. This TFT module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
The B070TN333C-27A 7" TFT LCD display supports CTP (Capacitive Touch Panel) technology, which allows for a more intuitive and responsive user interface compared to resistive touch screens.The capacitive touch screen technology is based on the principle of detecting the changes in capacitance on the surface of the touch panel.
The touch panel is composed of a transparent conductive layer on top of the display panel and a controller IC that senses the changes in the capacitance caused by the human touch. It provides a more accurate and precise input response and has a longer lifespan than resistive touch screens.

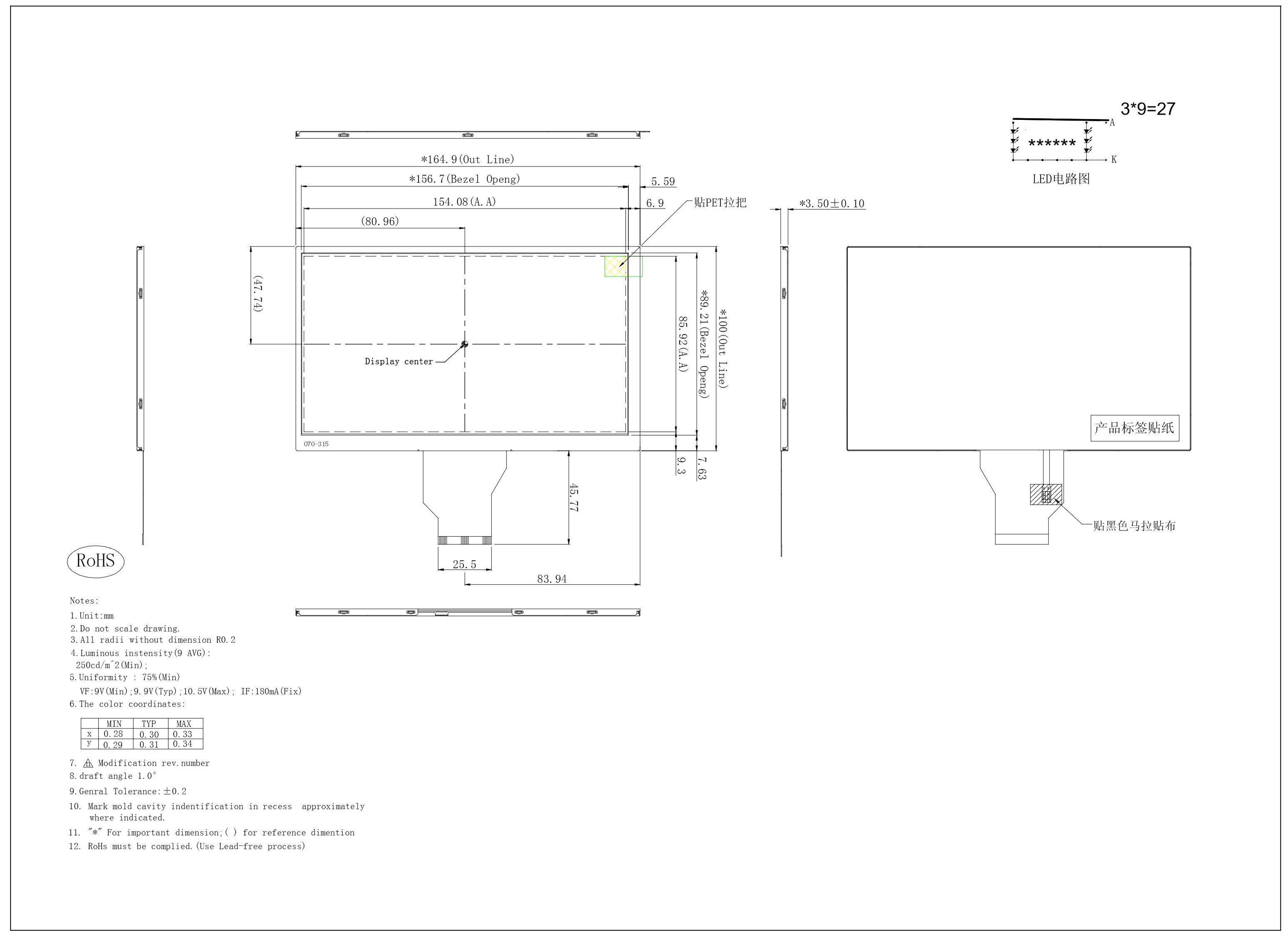

Mechanical Drawing
